LIGHTER. STRONGER. SAFER. SMARTER.
MSA 4X4's DS40 Fridge Drop Slide™ is an innovative, patented design which allows you to safely lower your fridge, providing easy, convenient access to its contents.

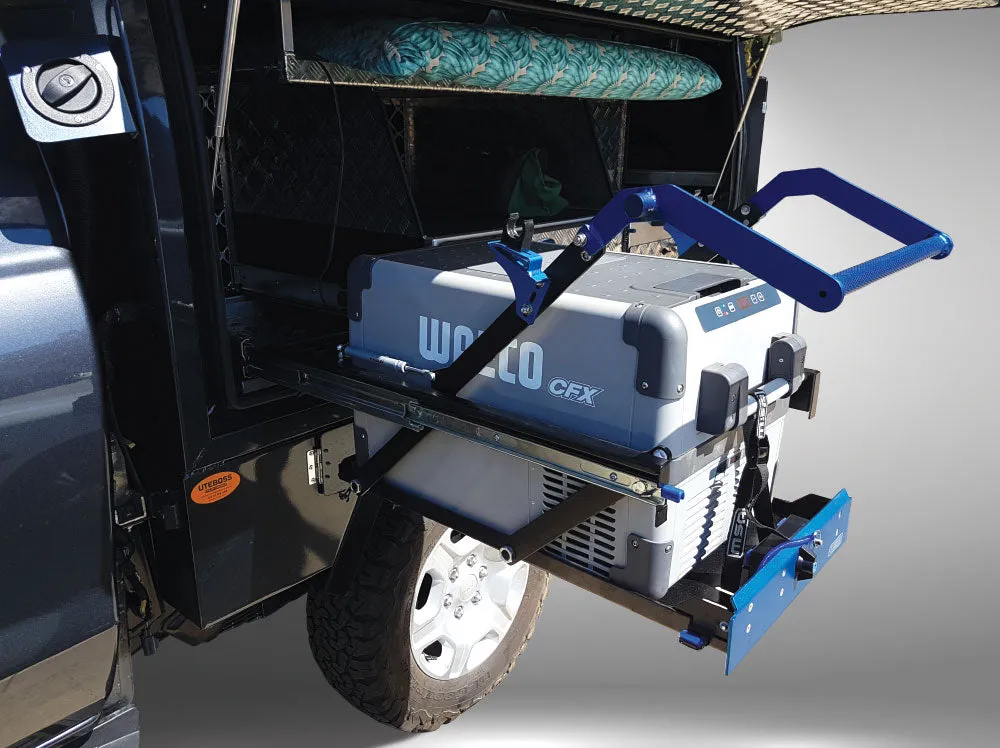

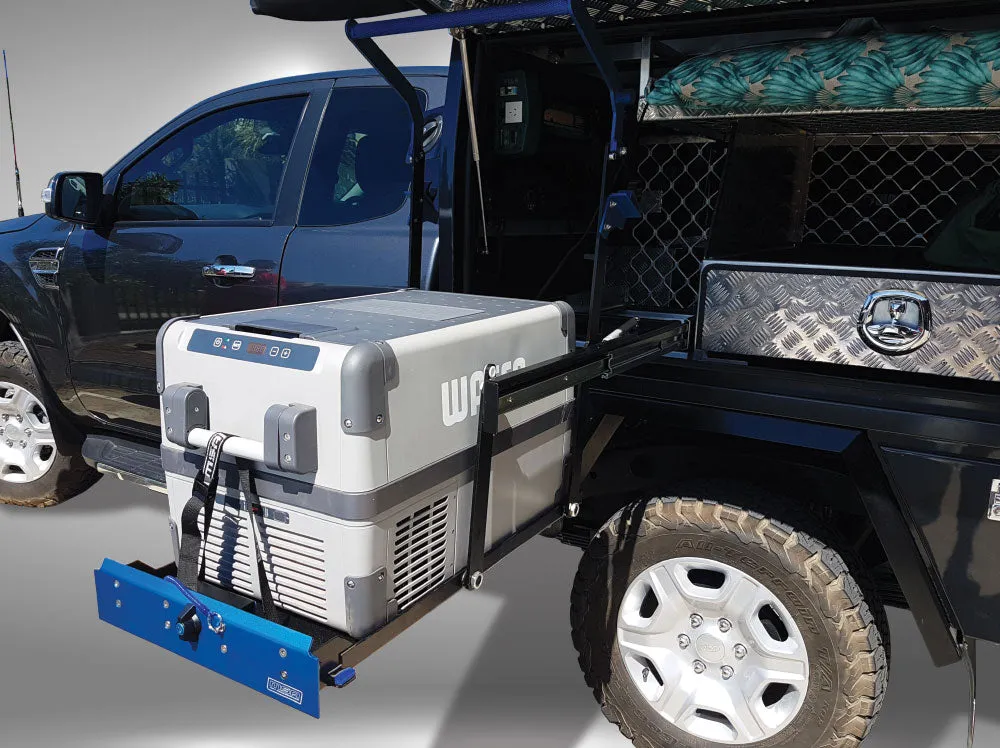

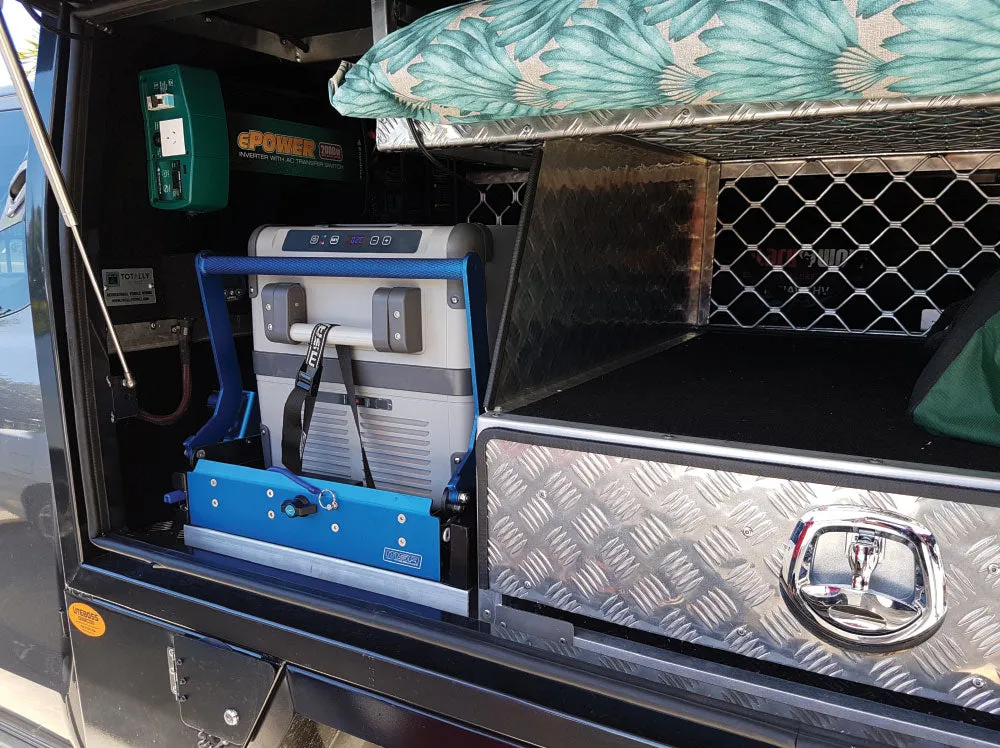

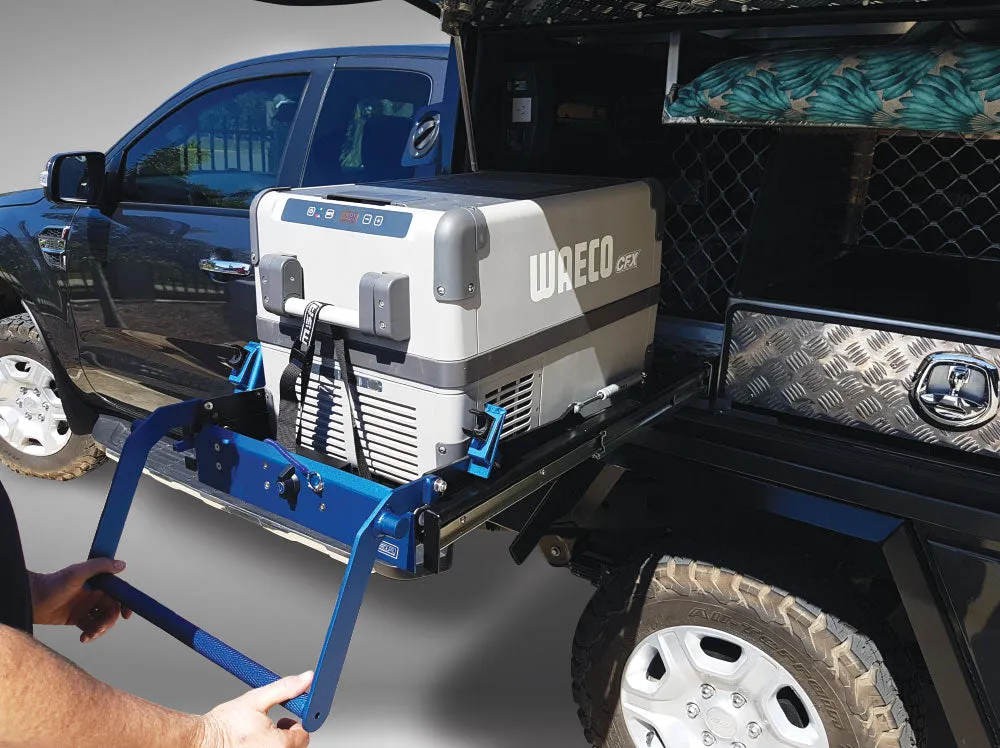

The Drop Slide™ is designed to slide smoothly out from its stowed position, before lowering 30cm in a safe and easy motion. This allows for the tray to remain in a horizontal position through the entire motion. The DS40 allows for complete access to the front and side of your fridge. It also offers a compact design which will not decrease storage space in your vehicle. The refined, patented design of our DS40 Drop Slide™ features 650NM quality gas struts, providing safe, easy lifting and lowering for loads up to an incredible 200kg. Now you can fill your fridge and access it with ease!
FEATURES:
- Compact size won't decrease storage space in your vehicle.
- No drawer disassembly required to install the slide.
- Designed to swing smoothly out further past the vehicle tailgate, providing easy and convenient access to the contents of your fridge from its complete front and side.
- Unique lock-in lock-out safety feature.
- Heavy duty 200kg slide runner rating.
- Tie down straps & all fixings included as standard.
- Stainless steel & blue anodised handle and face plate.
- Fridge Barriers available to suit for extra fridge protection & increased storage possibilities.
- Pre-drilled holes in the tray provide convenience in accommodating most popular fridges.

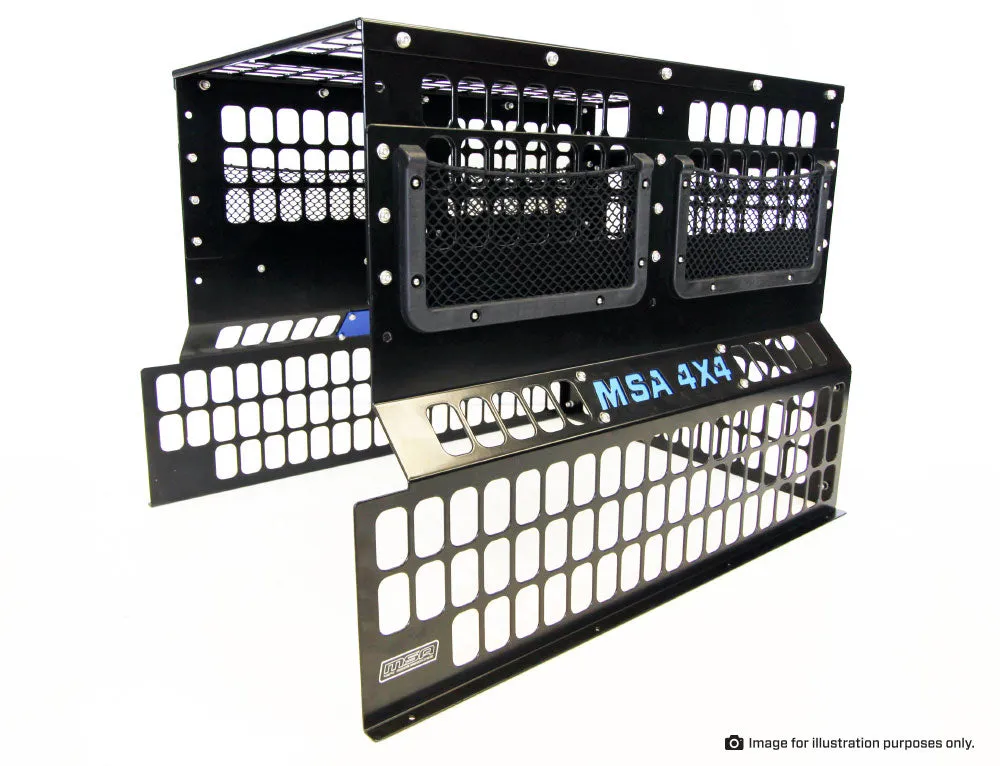

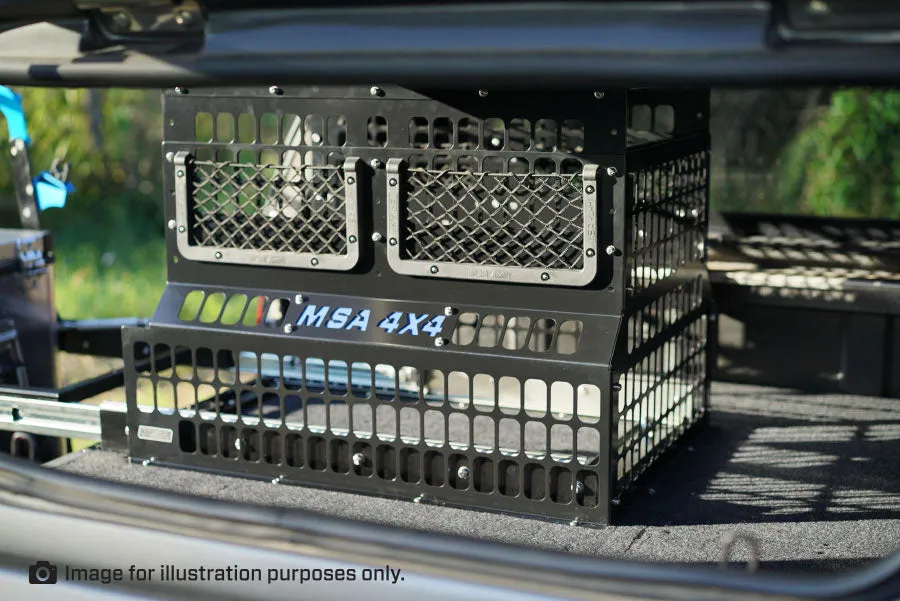

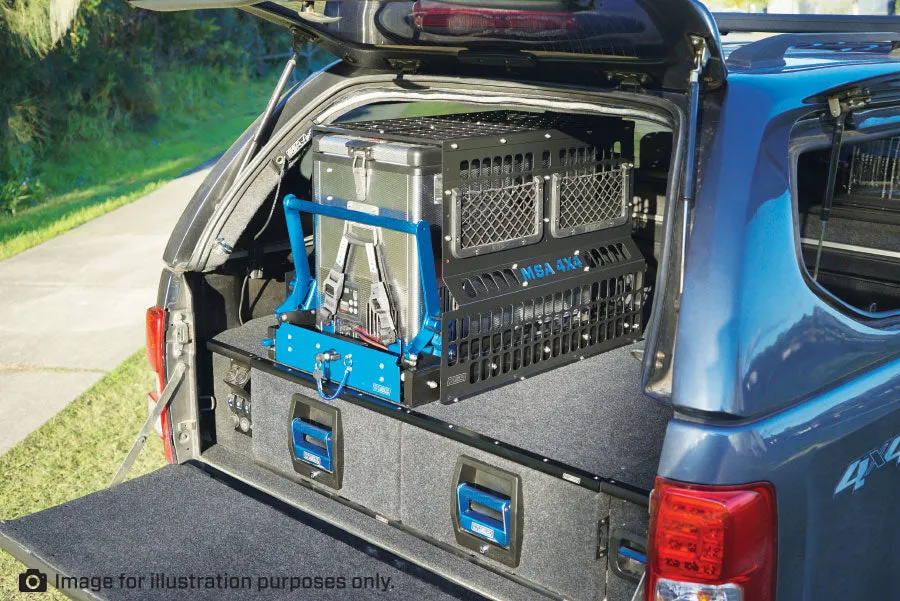

MAXIMISE YOUR STORAGE AREA WITH OUR FRIDGE BARRIER RANGE!
Store your accessories safely and securely around the Fridge Barrier and at the same time, protect your fridge from any loose gear! No more unpacking the car to access your fridge!
FEATURES:
- Gloss black powder coated steel frame which provides
safety, strength and durability - Practical side pockets included to store stubbie coolers,
cups, bottle openers and any other small items that require
easy access to! - Designed to fit perfectly around the MSA 4X4 Drop Slide™
and Fridge Slide range with the smallest possible footprint,
saving valuable storage space - Uniquely recognisable MSA 4X4 blue anodised logo on
both sides match in perfectly with the MSA 4X4 Drop Slide™
and Fridge Slide! - Easy to Install
- Peace of mind with MSA 4X4’s Lifetime Guarantee
The new MSA 4X4 Fridge Barrier Range is tough, durable and eye-catching, and delivers the perfect solution to protect your fridge from any loose gear packed around it!
| Weight | 34 kg ( 19kg Fridge Barrier) |
|---|---|
| Freight Dimensions | 91 × 60 × 16 cm ( 80 x 54 x 14cm Fridge Barrier) |

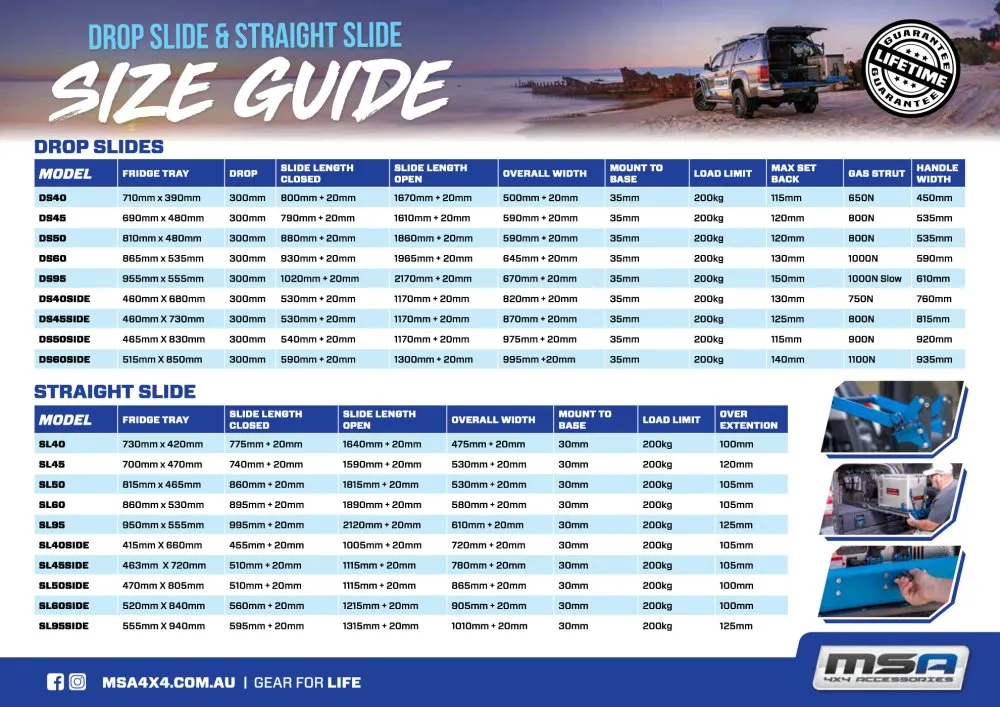

| Slide Dimensions | (all measurements displayed are in mm) |
| Fridge Tray | 710 x 390 |
| Drop | 300 |
| Slide Length Closed | 800 20 |
| Slide Length Open | 1670 20 |
| Overall Width | 500 20 |
| Mount to Base | 35 |
| Load Limit | 200kg |
| Max Set Back | 115 |
| Gas Strut | 650N |
| Handle Width | 450 |
| Suits These Fridges | ARB 35 L, ARB 47L, ENGEL 32L, ENGEL 40L, ENGEL 40L ANNIVERSARY, ENGEL ECLIPSE 38L, EVAKOOL ED40 (WHITE), EVAKOOL IB31 GREY (INDEL B), EVAKOOL IB40 GREY (INDEL B), EVAKOOL IB50 (INDEL B), EVAKOOL RV25, EVAKOOL RV35, IRONMAN 30L (INDEL B), IRONMAN 40L (INDEL B), IRONMAN 50L (INDEL B), OPPOSITE LOCK 50L (INDEL B), PRIMUS 31L (INDEL B), PRIMUS 40L (INDEL B), PRIMUS 45L (MAMMOTH), PRIMUS 50L (INDEL B), PRIMUS 60 (MAMMOTH), SNOMASTER 42L TRAVELLER (55MM INSULATION), TECHNIICE 42L, WAECO CF40, WAECO CF50, WAECO CF60 |
